Smart See Platform with Smartglasses

Distance Learning and Technical Assistance Using Smart Glasses

Everyday growth of technology, new possibilities arise to support activities on daily life.

In education and training, more and more digital learning materials are emerging, but there is still room for improvement.

Aioglobal develop smart glasses app and infrastructure to support distance learning with WebRTC. The instructor is connected to the learner by a video streaming session and gets the live video stream from the learner’s smart glasses from the learner’s point of view.

PROJECT OBJECTIVE

The deadly and infectious disease Corona Virus also known as Covid-19 has deeply affected the global economy. This tragedy has also shaken up the education sector, and this fear is likely to resonate across the education sector globally. The Covid-19 pandemic outbreak forced many schools and colleges to remain closed temporarily. Several areas are affected worldwide and there is a fear of losing this whole ongoing semester or even more in the coming future.

Various schools, colleges, and universities have discontinued in-person teaching. Online learning is a new method of learning experiences environments using different devices (e.g., mobile phones, laptops, etc.) with internet access. In these environments, students can be anywhere (independent) to learn and interact with instructors and other students.

PROBLEM STATEMENT

As We know, Online Learning is a new Method of Learning Experiences But The problem that Occurs is during online class Sessions they only shown face to face camera and don’t have another Close-Up camera for a lecture or teacher for purpose to show student more details. EG: Soldering, wiring, assemembly and more.

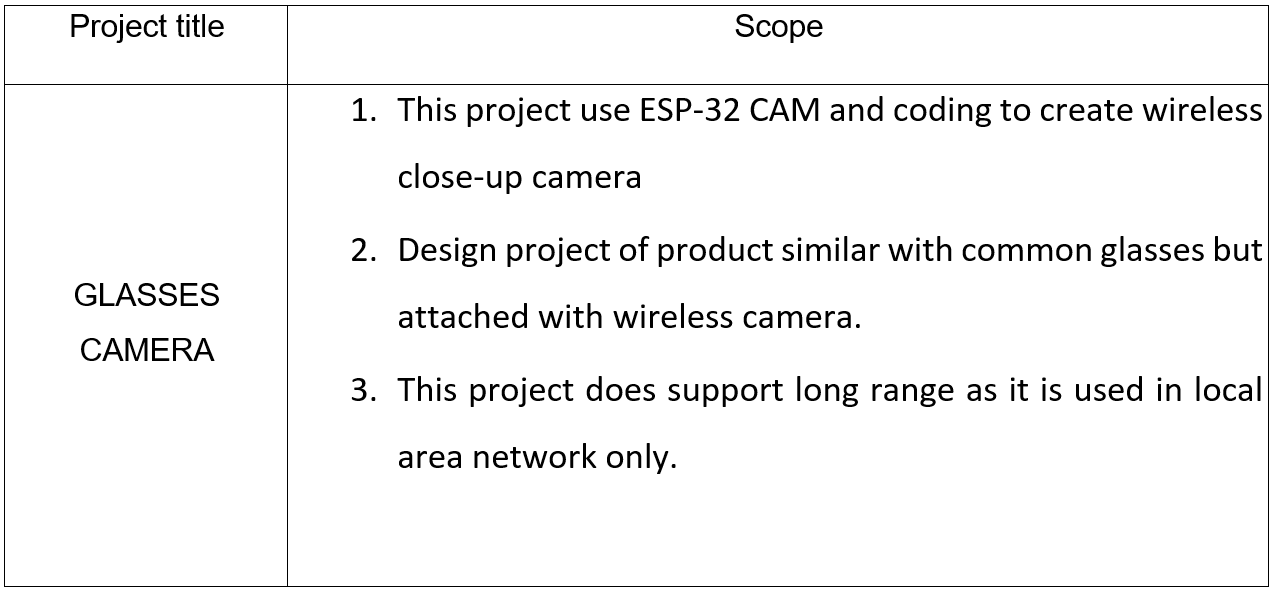

★ SCOPE OF PROJECT


PROJECT DESIGN


LITERATURE REVIEW

  • The smallest 802.11b/g/n Wi-Fi BT SoC module
  • Low power 32-bit CPU,can also serve the application processor
  • Up to 160MHz clock speed, summary computing power up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4MPSRAM
  • Supports UART/SPI/I2C/PWM/ADC/DAC
  • Support OV2640 and OV7670 cameras, built-in flash lamp
  • Support image WiFI upload
  • Support TF card
  • Supports multiple sleep modes
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP operation mode
  • Support Smart Config/AirKiss technology
★ PROJECT DEVELOPMENT
1) SUCCESS LAN CONNECTION USING IP ADDRESS

2) CODING USING ARDUINO AS PLATFORM

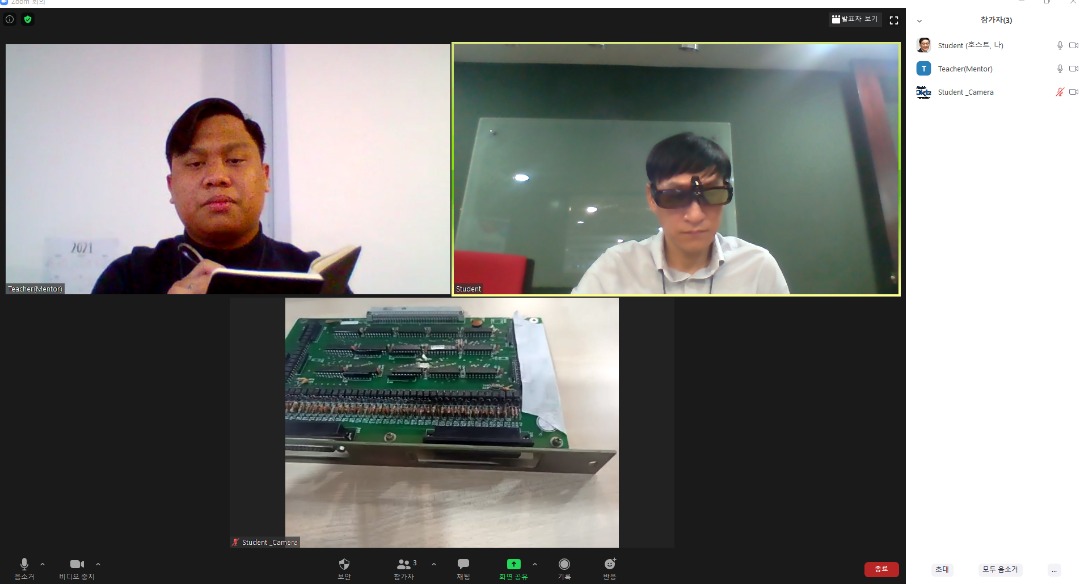

3) SUCCESSFUL WITH VIDEO CONFERENCE THROUGH ZOOM MEETING

i) First prototype using power bank as power supply board don’t have internal build battery.
ii) Video conference successful using multi camera with below condition

1) Face to face camera

2) Close up camera ( teaching purpose )
4) Connection Flow Process
  • Primary/Secondary school

Measured the water fill level of a glass (camera) and frequency of the

Sound created by hitting the glass (microphone) and displayed a graph with the relation of the fill level and the frequency.

  • Medical education

Smart glasses are used to solve communication and surgical education

challenges in the operating room.

  • STEM Education

monitor the students while they are performing a task in cyber security and forensic education with record the field of view and the spoken words of the students.

AIO global Glasses Camera provide various input possibilities such as speech, touch and gestures. The main advantage of using smart glasses is that users do not need their hands to hold the device. Therefore, these devices could be used to support participants in performing learning situations in which they need their hands such as learning and training.

WhatsApp Image 2021-02-24 at 10.11.33 AM
